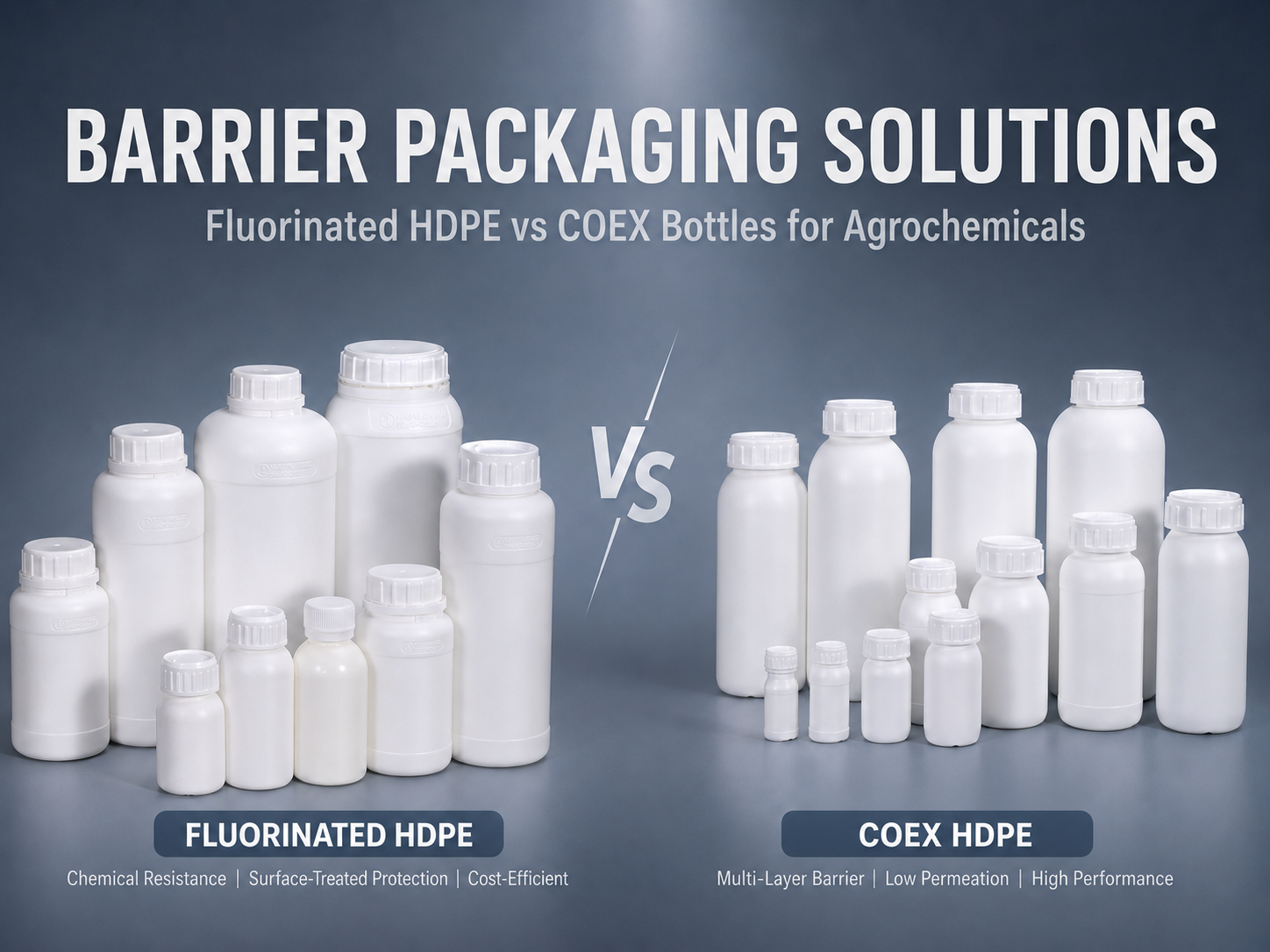

COEX Vs. Fluorinated HDPE: Selecting The Right Barrier Packaging for Agrochemicals

In the agrochemical sector, packaging is not just a container; it is a critical component of product stability, safety, and regulatory compliance. For procurement managers and packaging engineers handling concentrated pesticides, herbicides, and specialized solvents, standard High-Density Polyethylene (HDPE) often falls short. High-performance formulas can permeate plastic walls, leading to weight loss, odor leakage, and the dreaded "paneling" effect—where the bottle walls collapse inward as the internal pressure drops.

To solve these challenges, two primary technologies dominate the market: COEX (Co-extruded) barrier bottles and Fluorinated HDPE bottles. While both aim to provide superior chemical resistance, they utilize fundamentally different mechanisms. Selecting the wrong one can lead to either catastrophic packaging failure or unnecessary procurement costs.

This guide provides a technical B2B analysis of COEX and Fluorination technologies to help you make a data-driven selection for your next agrochemical project.

The Barrier Challenge in Agrochemical Packaging

Most agrochemicals use aggressive non-polar solvents (such as xylene, toluene, or kerosene) as carriers for active ingredients. Standard HDPE is a semi-crystalline polymer that, while excellent for water-based products, allows these smaller solvent molecules to migrate through the polymer chains.

When this migration occurs, the results are multi-fold:

1. Product Degradation: Loss of active ingredients affects efficacy.

2. Weight Loss: Evaporation through the walls leads to non-compliance with net-weight regulations.

3. Paneling: As the solvent vapor escapes, a vacuum is created inside the sealed bottle, causing it to deform or "dent."

4. Safety Risks: Escaping fumes can degrade labels, weaken outer cartons, and create health hazards in warehouses.

Understanding COEX Barrier Bottles: The Multi-Layer Solution

COEX, or co-extrusion blow molding, involves creating a container with multiple distinct layers of different resins. For agrochemicals, the structure is usually 4 to 6 layers deep.

The Anatomy of a COEX Bottle

A typical 5-layer COEX barrier bottle structure looks like this:

• Outer Layer (HDPE): Provides structural strength, color, and impact resistance.

• Tie Layer (Adhesive): Ensures the dissimilar materials bond together.

• Barrier Layer (Polyamide/Nylon or EVOH): The "engine" of the bottle. Nylon (PA) is exceptionally resistant to solvents and hydrocarbons, while EVOH provides a superior oxygen barrier.

• Tie Layer (Adhesive): Another bonding layer.

• Inner Layer (HDPE or specialized PE): Ensures chemical contact stability and ease of sealing.

Advantages of COEX

The primary strength of a COEX barrier bottle is its consistency and reliability. Because the barrier is a physical, continuous layer of a completely different material (like Nylon), it provides a near-impermeable shield that does not degrade over time. It is the gold standard for high-concentrate solvents where zero weight loss is the objective.

Understanding Fluorinated HDPE: The Surface Treatment Solution

Fluorination does not change the layers of the bottle. Instead, it modifies the chemistry of the HDPE surface itself. During or after the molding process, the HDPE is exposed to fluorine gas. This triggers a chemical reaction where fluorine atoms replace hydrogen atoms on the surface of the plastic.

The Chemistry of Fluorination

This reaction creates a thin, fluorocarbon-like layer (similar to PTFE or "Teflon") on the inner and sometimes outer surface of the bottle. This layer is highly resistant to non-polar solvents and significantly reduces the "wetting" and migration of chemicals into the HDPE.

Fluorination Levels

Fluorination is typically categorized into levels (Level 1 to Level 5). Level 3 is often the industry standard for agrochemicals, while Level 5 is reserved for the most aggressive solvents.

Advantages of Fluorination

Fluorinated bottles are mono-material (100% HDPE), which can simplify recycling in certain streams compared to multi-material COEX. From a manufacturing perspective, fluorination can be applied to standard bottle molds, offering more flexibility for custom shapes without the need for complex multi-layer extrusion machinery.

Technical Comparison: COEX vs. Fluorination

Practical B2B Purchasing Analysis: Which Should You Choose?

When evaluating these technologies for your procurement strategy, consider the following three factors:

1. The Aggressiveness of the Formula

If your product contains high concentrations of aromatic hydrocarbons or esters, the COEX barrier bottle is generally the safer choice. The physical thickness of the Nylon layer (typically 3-5% of the total wall thickness) provides a margin of safety that a surface treatment cannot match. For less aggressive oil-based formulas, Level 3 fluorination may offer sufficient protection at a lower cost.

2. Shelf-Life and Regulatory Requirements

In international trade, agrochemicals may sit in shipping containers or tropical warehouses for months. COEX bottles provide the most stable performance across temperature fluctuations. If your destination market has strict weight-loss tolerances (e.g., <1% over 2 years), COEX is often the only viable solution.

3. Sustainability and the "PFAS" Variable

Currently, the packaging industry is monitoring regulatory discussions regarding PFAS (per- and polyfluoroalkyl substances). While traditional fluorination is distinct from PFAS chemicals, some regions are increasing scrutiny on fluorinated containers. COEX bottles, being purely mechanical structures of HDPE and Nylon, avoid these specific chemical-treatment concerns, making them a "future-proof" choice for some risk-averse brands.

Common Mistakes in Barrier Selection

• Assuming All COEX is Equal: A 2-layer COEX bottle is very different from a 6-layer one. Always verify the barrier resin (PA vs. EVOH) and its percentage.

• Skipping Compatibility Tests: Never assume a "Level 3" fluorinated bottle will work just because it worked for a competitor. Minor additives in your formula can drastically change permeation rates.

• Over-Engineering: Using a 6-layer COEX bottle for a water-based pesticide is an unnecessary expense. Standard HDPE with the right UV additives might suffice.

The UMETASS Solution for High-Barrier Packaging

For buyers navigating the complexities of agrochemical packaging, UMETASS provides expert support in both COEX and Fluorinated container selection. Our technical team assists in discussions regarding layer ratios, material compatibility, and closure integrity to prevent leakage and paneling. Whether you require Fluorinated bottles or custom COEX barrier bottles, we focus on providing a scalable manufacturing solution that balances barrier performance with procurement efficiency. The final specification should always be validated through compatibility testing with your specific formula and storage conditions.
